Pulsar Operators Tutorial Part 2: Manage Pulsar Custom Resources with ArgoCD

Yuwei Sung

Solutions Engineer, StreamNative

Text Link

Apache Pulsar

ArgoCD

Pulsar Tutorials

Note: StreamNative now offers a unified approach to managing Pulsar clusters on Kubernetes systems, transitioning from two distinct versions of operators—Pulsar Operators (Basic Version) and StreamNative Operator (Advanced Version)—to a single, consolidated operator, StreamNative Operator, effective from the start of 2024. As part of this change, we will cease the release of new versions of Pulsar Operators, with future updates and enhancements being exclusively available through the StreamNative Operator, accessible only via StreamNative's paid services.

In the previous blog, I demonstrated how to deploy a Pulsar cluster using operators. The operators make Pulsar deployment much easier than the installation using Terraform or Ansible.

In this blog, I will demonstrate how to use ArgoCD to control Pulsar Custom Resources (CRs) by monitoring the GitHub branch/tag. In Part 1, you can see that the CRs stored in your local environment work properly in a demo/poc environment. When dealing with a production system, you will face configuration or infrastructure drift (too many chefs in the kitchen situation). GitOps uses git mechanisms to control CR versions in GitHub repositories with branches or tags. This allows you to easily control, roll back, and upgrade the configurations of your deployment, or find related historical changes.

Let’s begin!

1. Create a GitHub repository (_pulsar-ops in this example) to keep track of the CRs. ArgoCD will track the changes in a folder of a branch, so I put all the CRs under the default folder.

deployment git:(main) tree
.
├── README.md
└── default
   ├── bk-cluster.yaml
   ├── br-cluster.yaml
   ├── px-cluster.yaml
   └── zk-cluster.yaml
1 directory, 5 files

2. Once all the changes are committed, add the remote to the GitHub target repository, tag the Pulsar version, then push the CRs upstream.

deployment git:(main) git remote add origin git@github.com:yuweisung/pulsar-ops.git
deployment git:(main) git tag -a v2.9 -m "pulsar-2.9"
deployment git:(main) git push --set-upstream origin v2.9

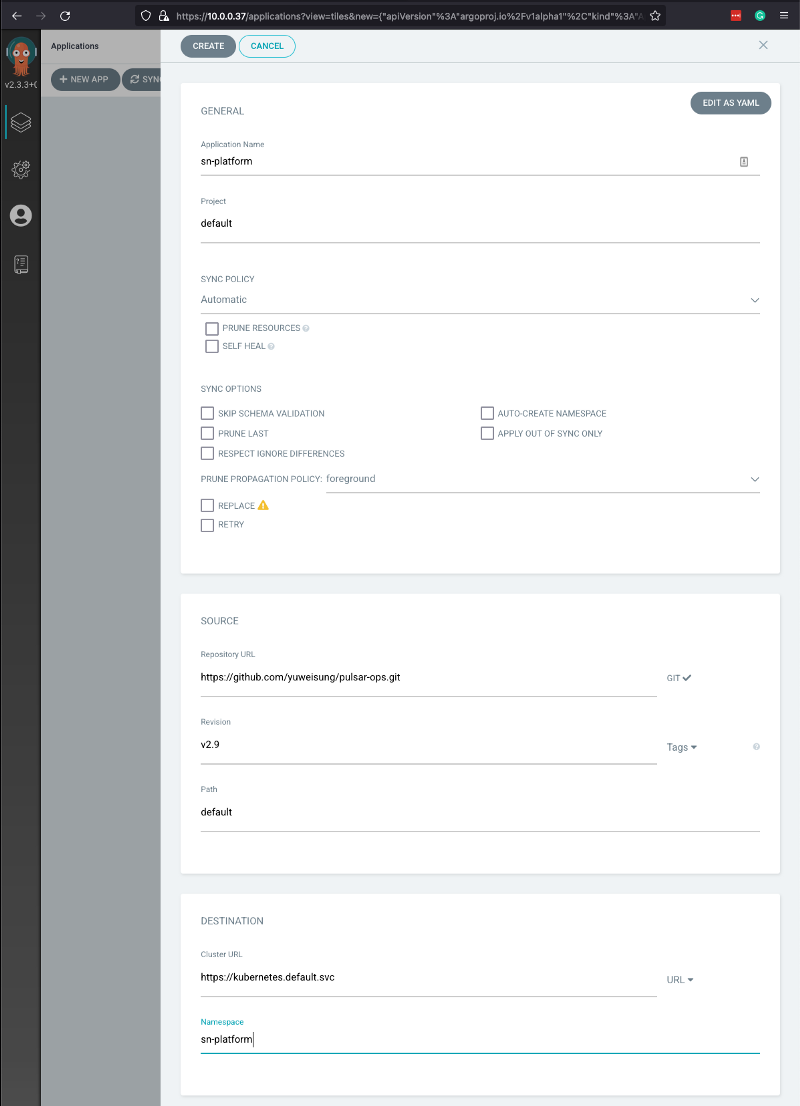

3. Now I can go to the ArgoCD Web UI to create a Pulsar cluster app. Log in to ArgoCD, create a new app with the following information, then click CREATE. Note that for Revision, I used Tags for demo. You should use branches in your production environment.

‍Application Name: sn-platform
‍Project: default
‍SYNC POLICY: Automatic
‍Repository URL: https://github.com/yuweisung/pulsar-ops.git
‍Revision: v2.9 Tags
‍Path: default
‍Destination: https://kubernetes.default.svc
‍Namespace: sn-platform

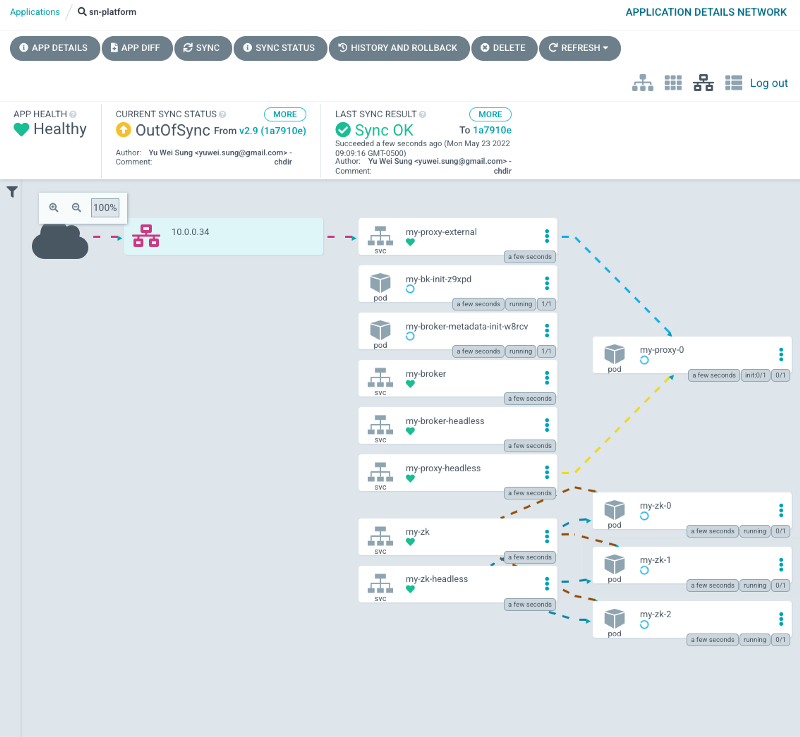

4. After the app is created, ArgoCD will scan the specific tag/branch (hashcode) and sync the CRs to deploy the Pulsar cluster as we did in Part 1 using _{kubectl apply -f}. The app detail shows the progress of the deployment.

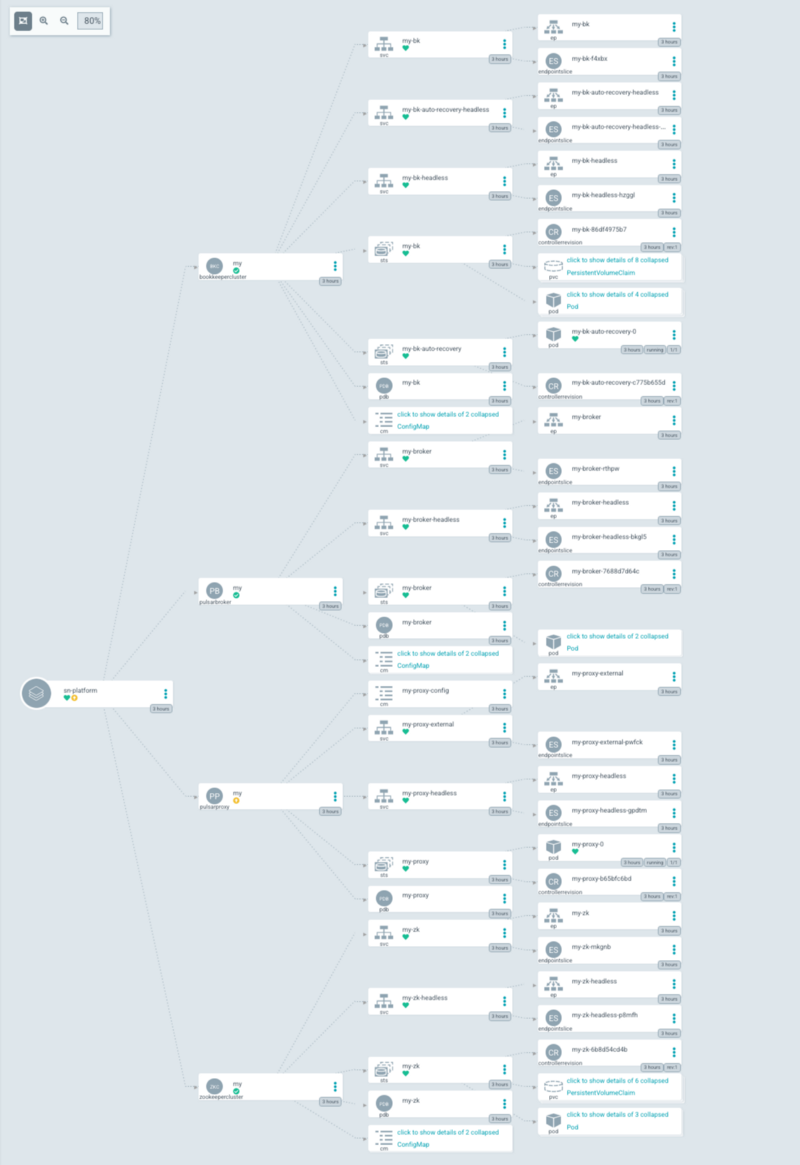

5. A few minutes later, ArgoCD will display the synced status and you can find all the manifests and their relations. Once everything is green, ArgoCD will keep watching the tag/branch and make sure the current cluster state matches the CRs in the tag/branch. If someone manually modifies the CRs or other generated manifests (_{kubectl edit <cr.yaml>}), ArgoCD will detect the drift and change the CR back to match the tag/branch. The only way to change the configuration of the cluster is using git operations.

6. Next, use git push and submit pull requests to control the CR details, such as adding JVM options and changing replicas of CRs. If everything works well, ArgoCD should be able to detect the changes and auto-apply the operation changes.

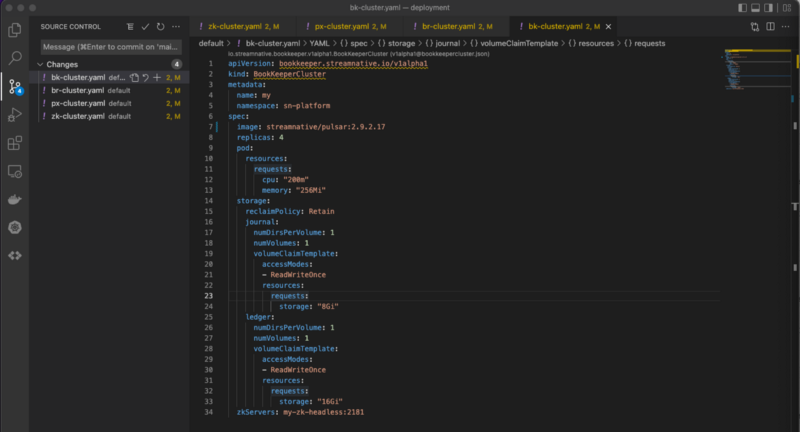

7. Change the image version from _2.9.2.15 to _2.9.2.17 and commit the changes.

8. After committing the changes, retag the commit to v2.9 and push with the force option.

deployment git:(main) git tag -a -f v2.9 1ee752a
Updated tag 'v2.9' (was e40f3b6)
deployment git:(main) git push origin v2.9 --force
Enumerating objects: 1, done.
Counting objects: 100% (1/1), done.
Writing objects: 100% (1/1), 165 bytes | 165.00 KiB/s, done.
Total 1 (delta 0), reused 0 (delta 0), pack-reused 0
To github.com:yuweisung/pulsar-ops.git
+ e40f3b6...fc5fb8d v2.9 -> v2.9 (forced update)

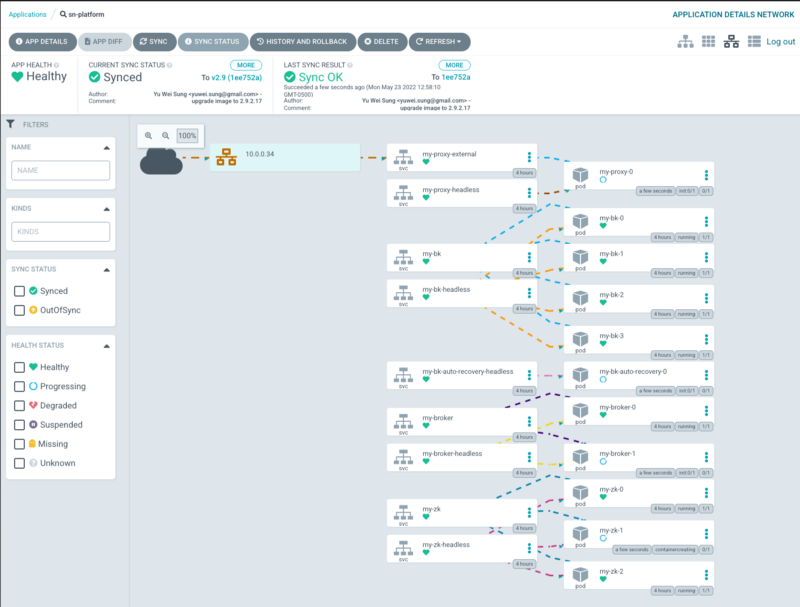

9. ArgoCD detects the commit changes and syncs the status automatically. From the Web UI, you can see that some components are in the “spinning” status as it follows the StatefulSet upgrade strategy.

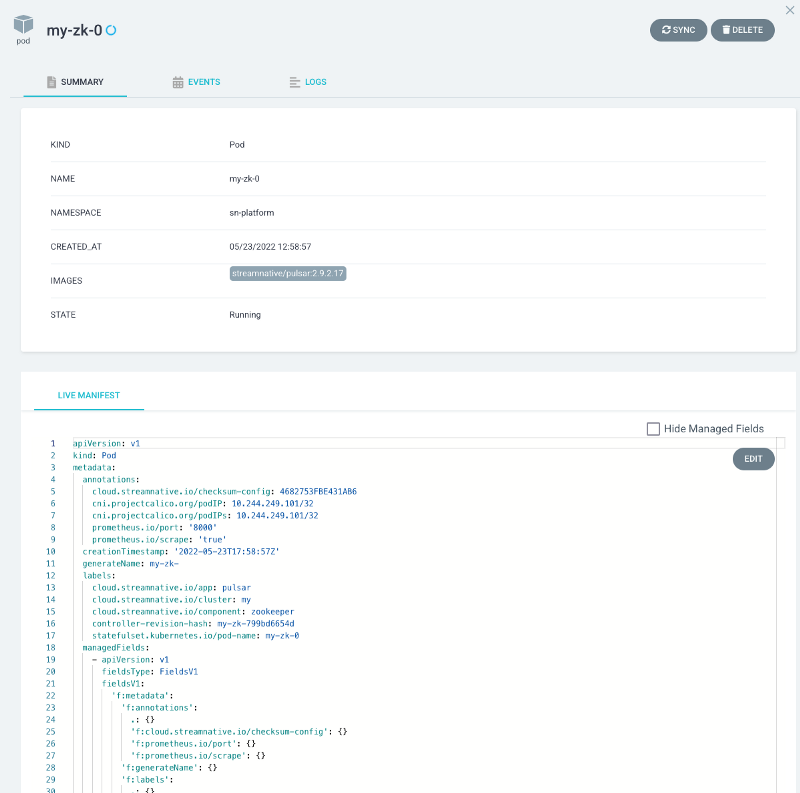

10. Click a ZooKeeper Pod and you can see that the image version has been updated.

11. Next, I want to use the same GitOps process to scale up/down brokers. Let’s modify the br-cluster.yaml file as shown below.

apiVersion: pulsar.streamnative.io/v1alpha1
kind: PulsarBroker
metadata:
 name: my
 namespace: sn-platform
spec:
 image: streamnative/pulsar:2.9.2.17
 pod:
   resources:
     requests:
       cpu: 200m
       memory: 256Mi
   terminationGracePeriodSeconds: 30
 config:
   custom:
     webSocketServiceEnabled: "true"
 replicas: 3
 zkServers: my-zk-headless:2181

12. Run the git commands to force retagging the new commit to v2.9 and to force pushing it to the remote origin branch. Note that I used _--force to retag the change. In your production environment, you should go through the PR and review process.

deployment git:(main) git add default/br-cluster.yaml
deployment git:(main) git commit -m 'scale up broker to 3'
[main 32e0468] scale up broker to 3
1 file changed, 1 insertion(+), 1 deletion(-)
deployment git:(main) git tag -a -f v2.9 32e0468
deployment git:(main) git push origin v2.9 --force
Counting objects: 100% (8/8), done.
Delta compression using up to 10 threads
Compressing objects: 100% (5/5), done.
Writing objects: 100% (5/5), 516 bytes | 516.00 KiB/s, done.
Total 5 (delta 2), reused 0 (delta 0), pack-reused 0
remote: Resolving deltas: 100% (2/2), completed with 2 local objects.
To github.com:yuweisung/pulsar-ops.git
+ fc5fb8d...13bf247 v2.9 -> v2.9 (forced update)

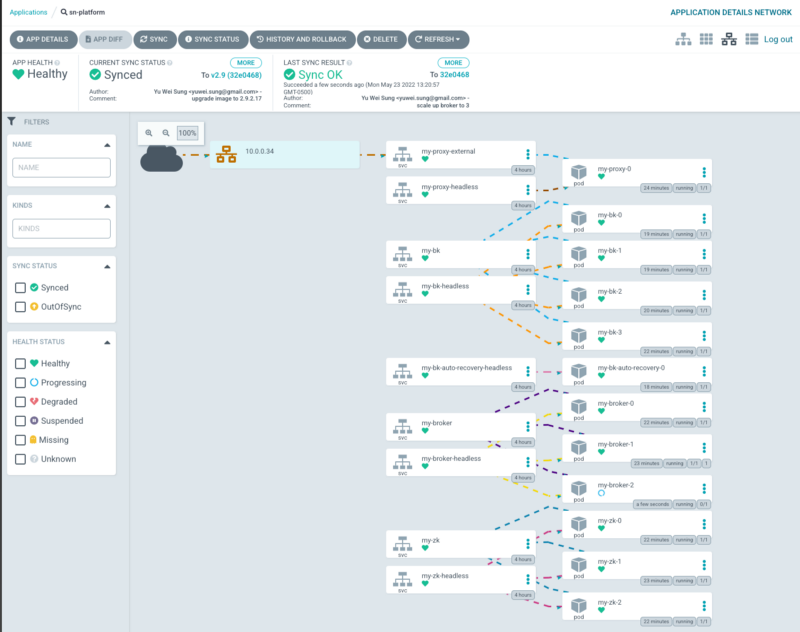

13. Once the code is pushed to the same tag, you should find the new broker (my-broker-2) running in the ArgoCD web UI.

Conclusion

With ArgoCD and GitHub, you can control Pulsar CR changes in an elegant way. Moreover, you can easily roll back and approve configurations, or find the change history from the GitHub repository.

In the next blog Part 3, I will demonstrate how to containerize Pulsar client apps using Dockerfiles. In Part 4, I will demonstrate how to use kpack to build Pulsar client apps without local Docker builds.
